The Nytro ROAD is destined to mark a new way. It is one of the lightest E-Road bikes on the market, with an unmistakably iconic Pinarello design.
Prepare to face what you previously thought impossible: Nytro E offers you the power to experience the very best of cycling.
ROAD specific geometry with the reactivity that characterizes our racing products merged with a more comfortable riding position.
POWER UP YOUR WAY
The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.
INNOVATION:
CARBON T700 UD
The secret of T700 Toray Carbon is to maintain reactivity and performance, but to offer a higher dampening to absorb all road vibration. More comfort, more fun.
ONDA FORK
A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.
ASYMMETRIC FRAME
Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.
TQ-HPR50 DRIVE UNIT
The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.
CE | 450 | 488 | 510 | 535 | 555 | 575 |
---|---|---|---|---|---|---|
CC | 460 | 500 | 530 | 550 | 575 | 600 |
L | 515 | 532 | 545 | 560 | 580 | 595 |
A [°] | 74.5 | 74 | 73.7 | 73.4 | 73 | 72.9 |
B [°] | 71.75 | 72 | 72.25 | 72.5 | 72.75 | 73 |
P | 420 | 420 | 420 | 420 | 420 | 420 |
T | 130 | 140 | 151 | 170 | 200 | 225 |
D | 72 | 72 | 72 | 72 | 72 | 72 |
R | 47 | 47 | 47 | 47 | 47 | 47 |
G | 373 | 373 | 373 | 373 | 373 | 373 |
REACH | 358.4 | 369.7 | 377.5 | 384.2 | 391.4 | 398 |
STACK | 545.4 | 555.8 | 567.2 | 586.2 | 615.8 | 640.6 |

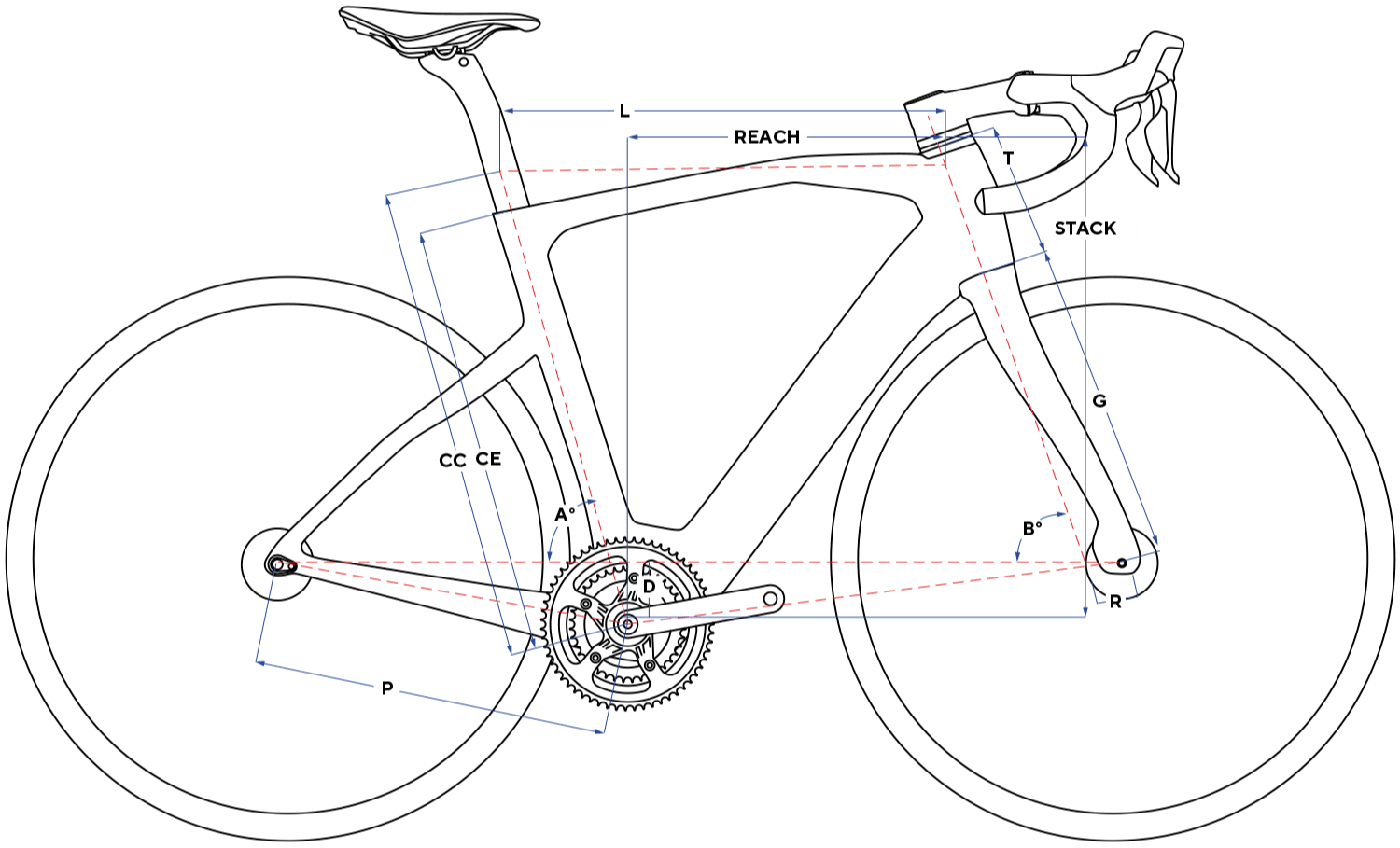

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
Specs
Motor | TQ-HPR50 |
---|---|
Battery | 360 Wh integrated Battery |
Fork | Onda Fork, 47mm Rake |
Stem | Tiger Alu Aero TiCR - 130mm |
Chain | Shimano CN-M7100 |
Frame | T700 UD Carbon Road Frame |
Tires | Pirelli P7 |
Brakes | 110 BR-R7170 |
Rotors | Shimano SM-RT70 160MM CL |
Saddle | MOST Lynx Aircross |
Wheels | FULCRUM RACING 800 DB |
Headset | MOST 1.5" Bearing Kit (for TiCR) |
Crankset | MOST - 175MM |
Seatpost | Carbon Aero Seat Post |
Shifters | 105 Di2 ST-R7170 2x12sp |
Chainrings | 50-34T |
Handlebars | Jaguar XA Aero TiCR - 46cm |
Tape/Grips | Ultragrip EVO 3mm |
Rear Derailleur | 105 Di2 RD-R7150 12sp |
Front Derailleur | 105 Di2 FD-R7150 Brazed-On |
Cassette/Freewheel | 105 R7100 11-34T |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Ghost Black / 46cm / 700c | C1767154093-19727 | |
Ghost Black / 50cm / 700c | C1767154093-19728 | |
Ghost Black / 53cm / 700c | C1767154093-19730 | |
Ghost Black / 55cm / 700c | C1767154093-19729 | 210000027335 |
Ghost Black / 57.5cm / 700c | C1767154093-19731 | 210000027337 |
Ghost Black / 60cm / 700c | C1767154093-19732 |
