Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 140mm of travel
-
Seat binder
Alloy, 38.6mm
-

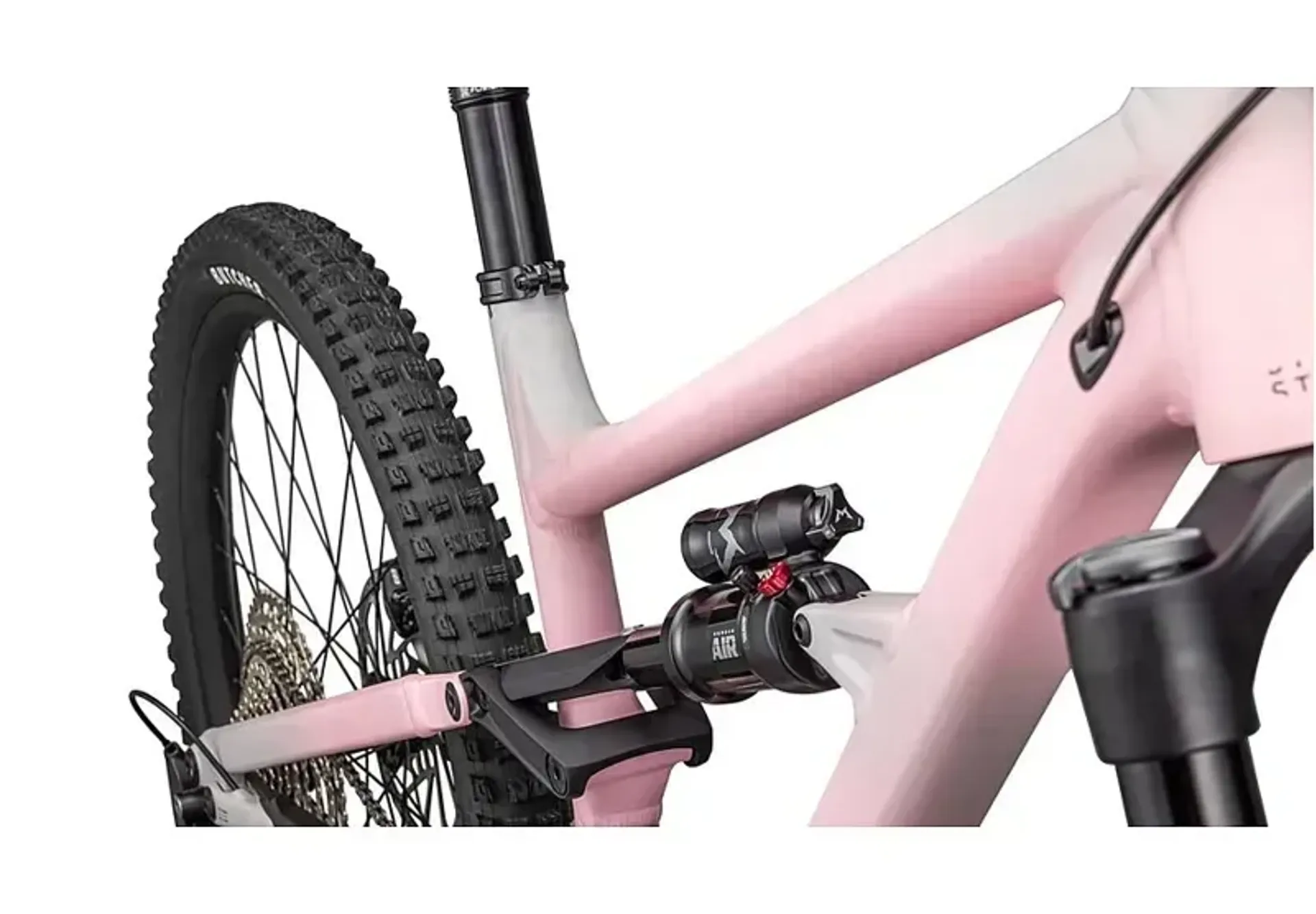

Rear shock
Marzocchi Bomber Air, Ride Dynamics Trail Tune, 2-position non-indexed compression sweep, w/ LSR adjustment, S1:210x50mm, S2-S5:210x52.5mm
-
Fork
Marzocchi Z1, GRIP damper, two position Sweep adjustment, 15x110mm Kabolt axle, 44mm offset, 140mm of travel
-
Front brake
TRP Trail EVO, 4-piston caliper, hydraulic disk, 203mm
-
Rear brake
TRP Trail EVO, 4-piston caliper, hydraulic disk, 203mm
-
Shift levers
Shimano Deore, M6100, I-Spec EV, 12 speed
-
Rear derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
-
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
-
Chain
Shimano Deore M6100, 12spd
-
Crankset
Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
-
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
-
Front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
-
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
-
Spokes
DT Swiss Industry
-
Front tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
-
Rear tire
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
-
Inner tubes
Standard, Presta valve
-
Stem
Alloy Trail Stem, 35mm bar bore
-

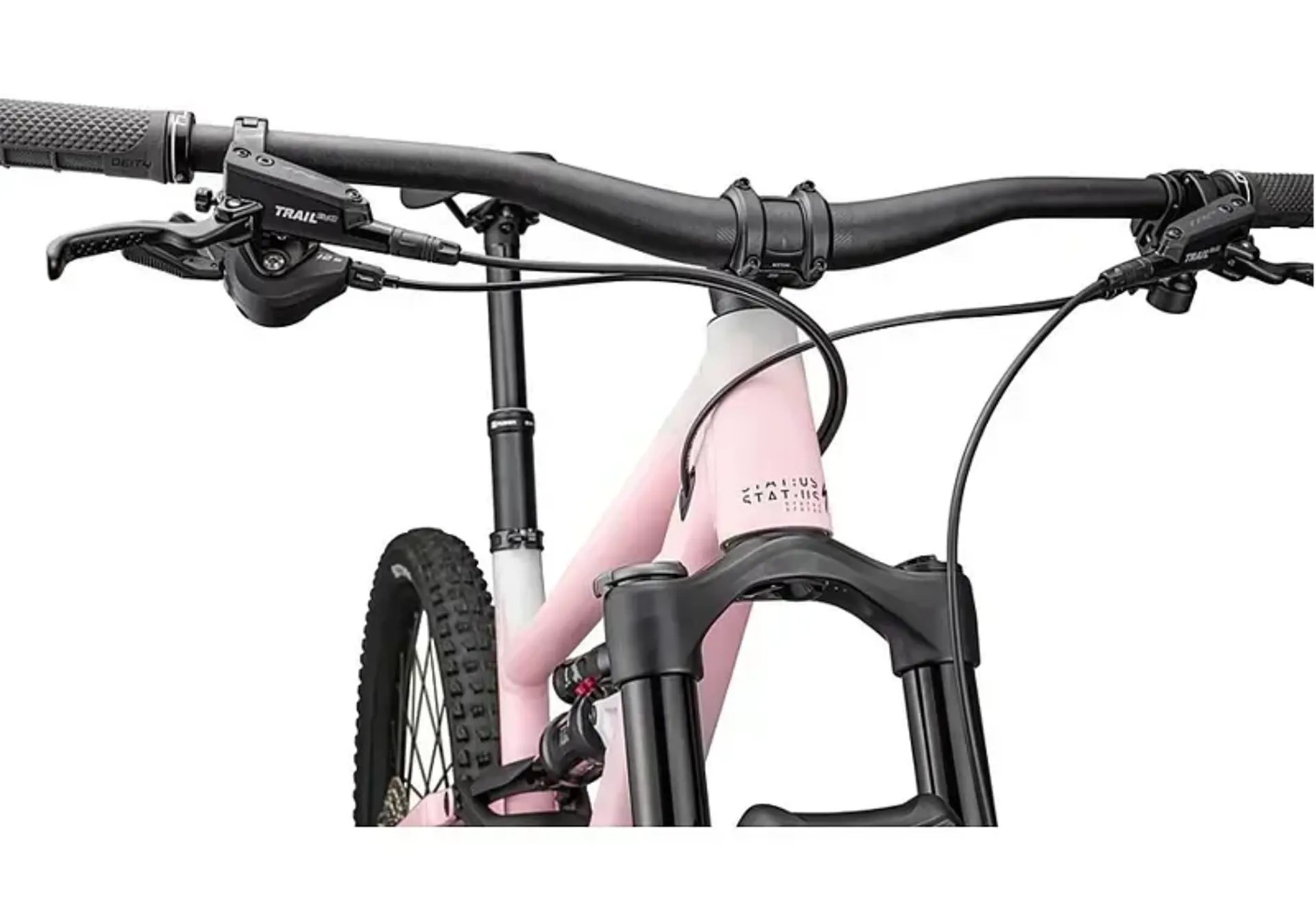

Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width
-
Grips
Deity Knuckleduster
-
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
-
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
-
Product id
221251
-
Weight
15.29 kg (33 lb, 11.3 oz)
-
Weight size
S3
